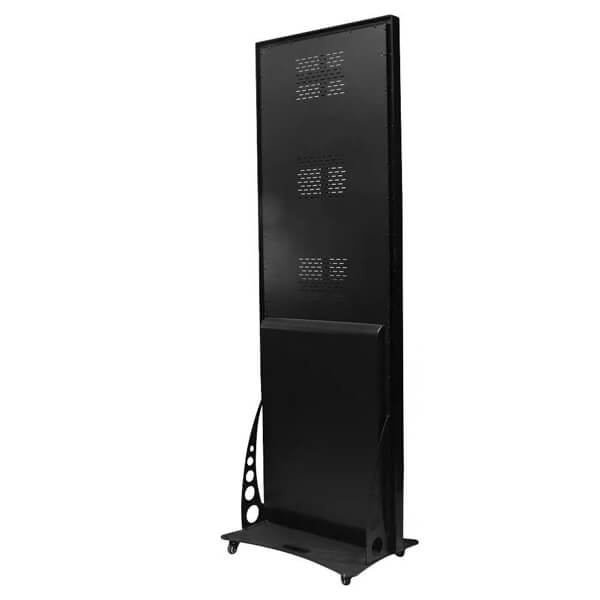

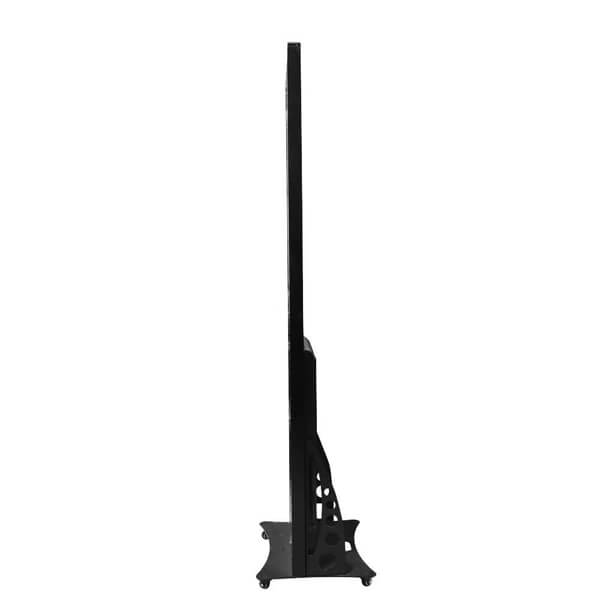

PT Pro Series LED Display

Indoor Samrt LED Poster

  • Display Size: 640×1920
  • Cabinet Size: 660×1940
  • Cabinet Weight: 47Kg
  • IP Rating: IP31
  • Refresh Frequency/Hz: ≥1920 Hz
  • Operating Temperature: -40℃~+60℃
Quote Now Next
PT Pro Series LED Display
PT Pro Series LED Display
PT Pro Series LED Display
  • Features
  • Specifications
  • Download
  • Cases
Pixel Pitch 1.8mm 2mm 2.5mm 3.3mm
LED Configuration SMD1515 SMD1515 SMD2121 SMD2121
Pixel Density/pc 355008 dots 307200 dots 196608 dots 110592 dots
Module Size/mm 320×160 320×160 320×160 192 x 192
Module Resolution 172×86 160×80 dots 128 x 64 dots 96 x 48 dots
Display size 640×1920 640×1920 640×1920 640×1920
Cabinet  Size 660×1940 660×1940 660×1940 660×1940
Cabinet Weight 47Kg 47Kg 47Kg 47Kg
IP Rating IP31 IP31 IP31 IP31
Scan 1/43S 1/40S 1/32S 1/24S
Brightness /sqm 1200 nits 1200 nits 1200 nits 1200 nits
View Angle/° 160°/ 140°(H/V) 160°/ 140°(H/V) 160°/ 140°(H/V) 160°/ 140°(H/V)
Gray Scale/bit 16 bit 16 bit 16 bit 16 bit
Max. Power Consumption/pc 675 W 675 W 675 W 675 W
Ave. Power Consumption/W 225 W 225 W 225 W 225 W
Refresh Frequency/Hz ≥1920 Hz ≥1920 Hz ≥1920 Hz ≥1920 Hz
Operating Power AC 96~242V 50/60Hz
Operating Temperature -40℃~+60℃
Operating Humidity 10~90%RH
Operating Life 100, 000Hours



document download
Indoor GOB P1.86 with excellent performance

Indoor GOB P1.86 with excellent performance

Vietnam GOB P1.86 indoor conference LED display
  • Location: Vietnam
  • Pixel pitch:P1.86
  • Size:4800x1280mm
  • Time:2024
Russian indoor transparent screen P3.9-7.8 National star lamp 5000 brightness 45 square

Russian indoor transparent screen P3.9-7.8 National star lamp 5000 brightness 45 square

Indoor transparent screen P3.9-7.8 National star lamp 5000 brightness
  • Location:Russia
  • Pixel pitch:P3.91
  • Size:45 square
  • Time:2022
Austria P2.6 Indoor Curved LED display

Austria P2.6 Indoor Curved LED display

Austria P2.6 Indoor Curved LED display
  • Location:Austria
  • Pixel pitch:P2.6
  • Size:3 sets W3x H1.5m,2 sets W1x H1.5m
  • Time:2022
Indoor 3840Hz P2.9 LED display in Japan shopping mall

Indoor 3840Hz P2.9 LED display in Japan shopping mall

Indoor 3840Hz P2.9 LED display in Japan shopping mall
  • Location:Japan
  • Pixel pitch:P2.9
  • Size:30pcs
  • Time:2022
America Stadium Score 50.4feetx 25.2feet P10 LED Display

America Stadium Score 50.4feetx 25.2feet P10 LED Display

American Stadium Score 50.4feetx 25.2feet P10 LED Display
  • Location: America
  • Pixel pitch:P10
  • Size: 50.4feetx 25.2feet
  • Time:2021
Canada RT series P3.91mm outdoor cabinet 500x500mm 300 rental LED display

Canada RT series P3.91mm outdoor cabinet 500x500mm 300 rental LED display

Canada RT series P3.91mm outdoor cabinet 500x500mm 300 rental LED display
  • Location:Canada
  • Pixel pitch:P3.91
  • Size:75sqm
  • Time:2021
