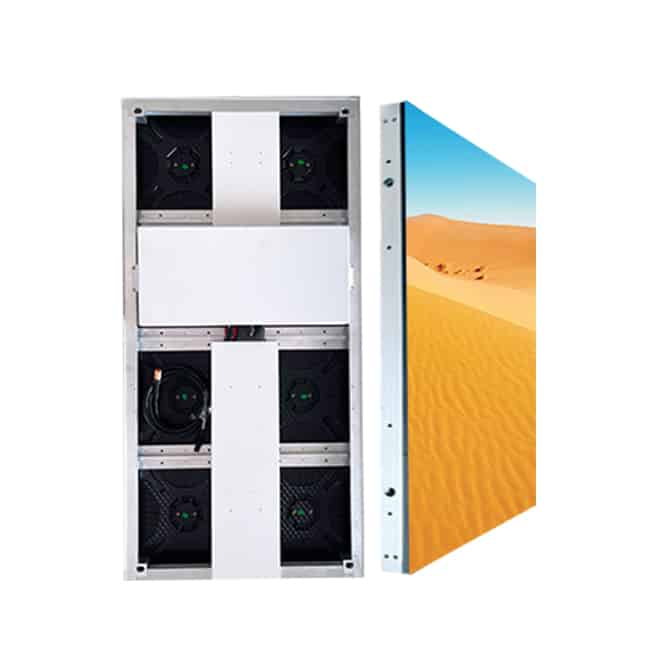

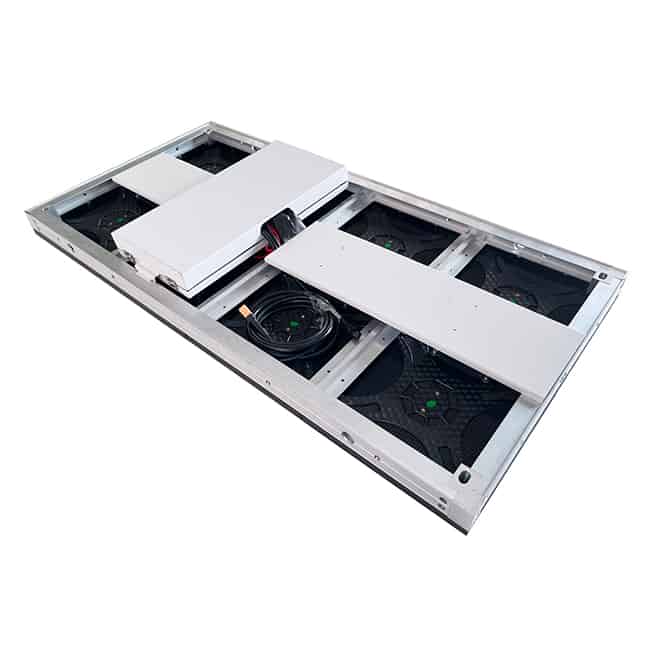

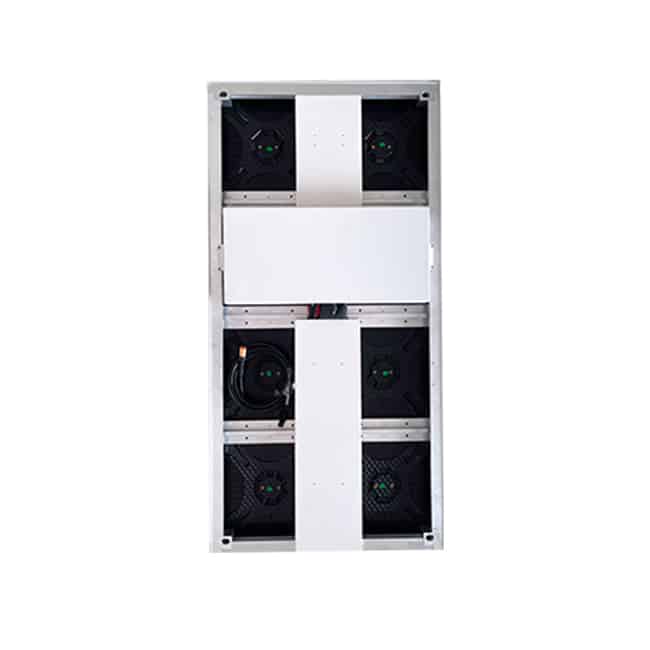

AF Series Outdoor Full Front Maintenance

Light | Thin | Waterproof IP65

  • Module Size: 250x250mm
  • Cabinet Size: 500×1000 mm
  • Cabinet Weight: 13 kg
  • View Angle： 160°/140°（H/V）
  • Refresh Frequency: 3840Hz
  • Operating Temperature: -40°C~+60°C
Quote Now Next
AF Series Outdoor Full Front Maintenance
AF Series Outdoor Full Front Maintenance
AF Series Outdoor Full Front Maintenance
  • Features
  • Specifications
  • Download
  • Cases

All the parts such as receiving card, pow supply,
cables can be well took out from front side with the tool,
no need any maintenance space backside.

Strong aluminum material to avoid transformation
after long time outside environment
Light and easy for installation
Fanless design, self-cooling

Support 90 degree right angle installation

Pixel Pitch 2.9 3.9mm 4.81mm
LED Configuration SMD1415 SMD1921 SMD1921
Application Outdoor Outdoor Outdoor
Pixel Density/sqm 112896 dots 65536 dots 43264dots
Module Size/mm 250 x 250 250 x 250 250 x 250
Module Resolution 84x 84 dots 64 x 64 dots 52 x 52 dots
Cabinet  Size 500x1000mm 500x1000mm 500x1000mm
Cabinet Resolution 168x 336dots 128 x 256 dots 104 x 208dots
Cabinet Weight 13Kg 13Kg 13Kg
IP Rating IP65 IP65 IP65
Scan 1/21S 1/16S 1/13S
Brightness /sqm 4500-5000 nits 4500-5000 nits 4500-5000nits
View Angle/° 160°/ 140°(H/V) 160°/ 140°(H/V) 160°/ 140°(H/V)
Gray Scale/bit 16 bit 16 bit 16 bit
Max. Power Consumption/W 640 W/sqm 640 W/sqm 640 W/sqm
Ave. Power Consumption/W 192 W/sqm 192 W/sqm 192 W/sqm
Refresh Frequency/Hz 3840 Hz 3840 Hz 3840 Hz
Operating Power AC 96~242V 50/60Hz
Operating Temperature -40℃~+60℃
Operating Humidity 10~90%RH
Operating Life 100,000Hours
