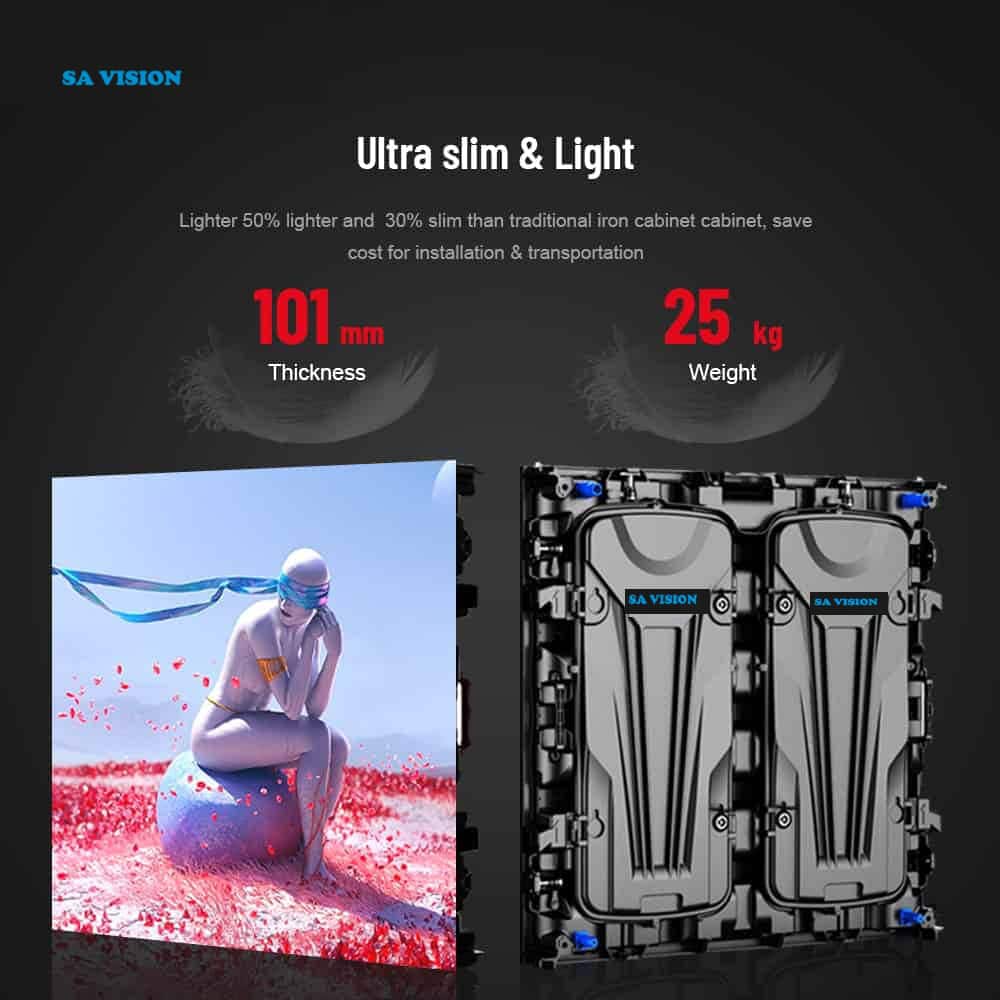

SA Outdoor Advertising Board

The most cost-effective outdoor energy-saving screen

  • Module Size: 320x160mm
  • Cabinet Size: 960×960 mm
  • Cabinet Weight: 25 kg
  • View Angle： 160°/140°（H/V）
  • Refresh Frequency: 1920Hz
  • Operating Temperature: -40°C~+60°C
Quote Now
SA Outdoor Advertising Board
SA Outdoor Advertising Board
SA Outdoor Advertising Board
  • Features
  • Specifications
  • Download
  • Cases

Pixel Pitch 2.5mm 3.3mm 4mm 5mm 6.6mm 8mm 10mm 10mm
LED Configuration SMD1515 SMD1921 SMD1921 SMD1921 SMD3535 SMD3535 SMD3535 SMD3535
Pixel Density/sqm 160000 dots 91827 dots 62500 dots 40000 dots 22957 dots 15625 dots 10000 dots 10000 dots
Module Size/mm 320 x 160 320 x 160 320 x 160 320 x 160 320 x 160 320 x 160 320 x 160 320 x 160
Module Resolution 128×64 dots 96 x 48 dots 80 x 40 dots 64 x 32 dots 48 x 24 dots 40 x 20 dots 32 x 16 dots 32 x 16 dots
Cabinet  Size 960 x 960 mm 960 x 960 mm 960 x 960 mm 960 x 960 mm 960 x 960 mm 960 x 960 mm 960 x 960 mm 960 x 960 mm
Cabinet Resolution 384×384 dots 288 x 288 dots 240 x 240 dots 192 x 192 dots 144 x 144 dots 120 x 120 dots 96 x 96 dots 96 x 96 dots
Cabinet Weight 25kg 25kg 25kg 25kg 25kg 25kg 25kg 25kg
IP Rating IP65 IP65 IP65 IP65 IP65 IP 65 IP65 IP65
Scan 1/10S 1/12S 1/10S 1/8S 1/6S 1/5S 1/2S 1/4S
Brightness /sqm 5000 to 6000 nits 5000 to 6000 nits 5000 to 6000 nits 5000 to 6000 nits 5000 to 6000 nits 5000 to 6000 nits 6000 to 7000 nits 5000 nits
View Angle/° 160°/ 140°(H/V) 160°/ 140°(H/V) 160°/ 140°(H/V) 160°/ 140°(H/V) 160°/ 140°(H/V) 160°/ 140°(H/V) 160°/ 140°(H/V) 160°/ 140°(H/V)
Gray Scale/bit 14 bit 14 bit 14 bit 14 bit 14 bit 14 bit 14 bit 14 bit
Max. Power Consumption/W 800W/sqm 800W/sqm 750W/sqm 750W/sqm 800W/sqm 800W/sqm 800W/sqm 530W/sqm
Ave. Power Consumption/W 240W/sqm 240W/sqm 225W/sqm 225W/sqm 240W/sqm 240W/sqm 240W/sqm 159W/sqm
Refresh Frequency/Hz 1920 Hz 1920 Hz 1920 Hz 1920 Hz 1920 Hz 1920 Hz 1920 Hz 1920 Hz
Operating Power AC 96~242V 50/60Hz
Operating Temperature -40℃~+60℃
Operating Humidity 10~90%RH
Operating Life 100,000Hours
