CV Series

Born for creative realize your creation and imagination

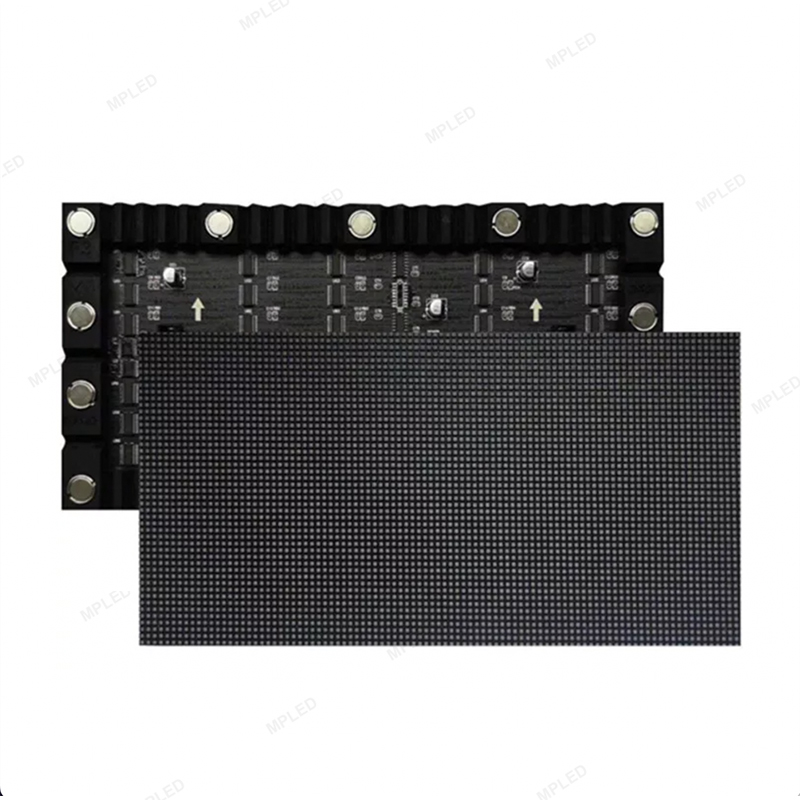

Module Size: 320*160*5.35 mm
Cabinet Size: Customized
Maintenance way: Front and rear side maintenance
View Angle： 160°/140°（H/V）
Refresh Frequency: 3840Hz
Operating Temperature: -40°C~+60°C

Quote Now Next

Features
Specifications
Download
Cases

Flexible LED Display

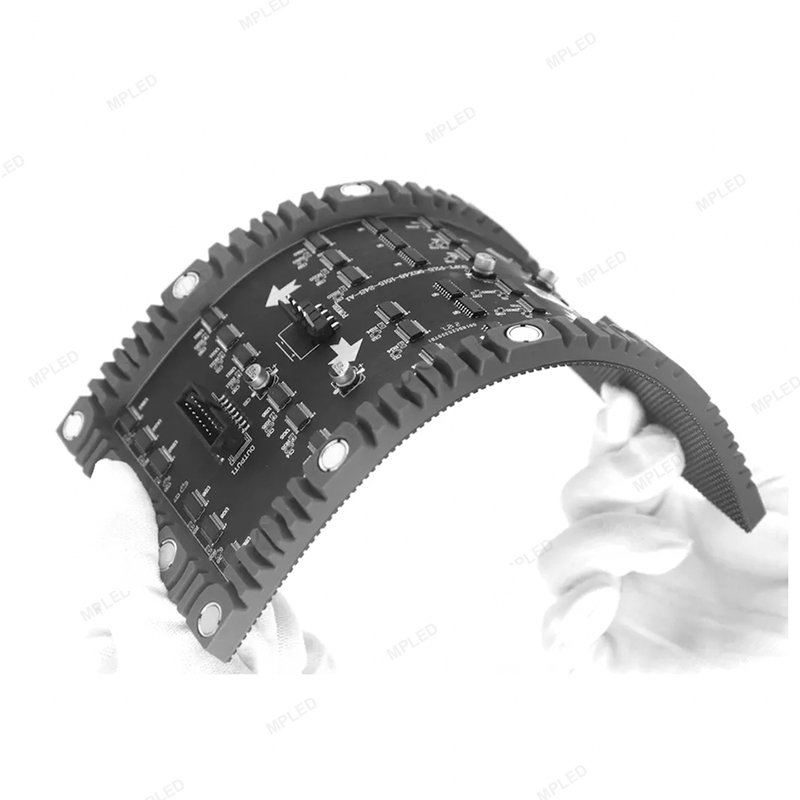

Flexibly bend without damage for led module and les, this is the special design led display. Mainly use for indoor irregualr creative shape led diplay, such as led column, led cylinder, wave led, etc.

The fifth generation flexible module

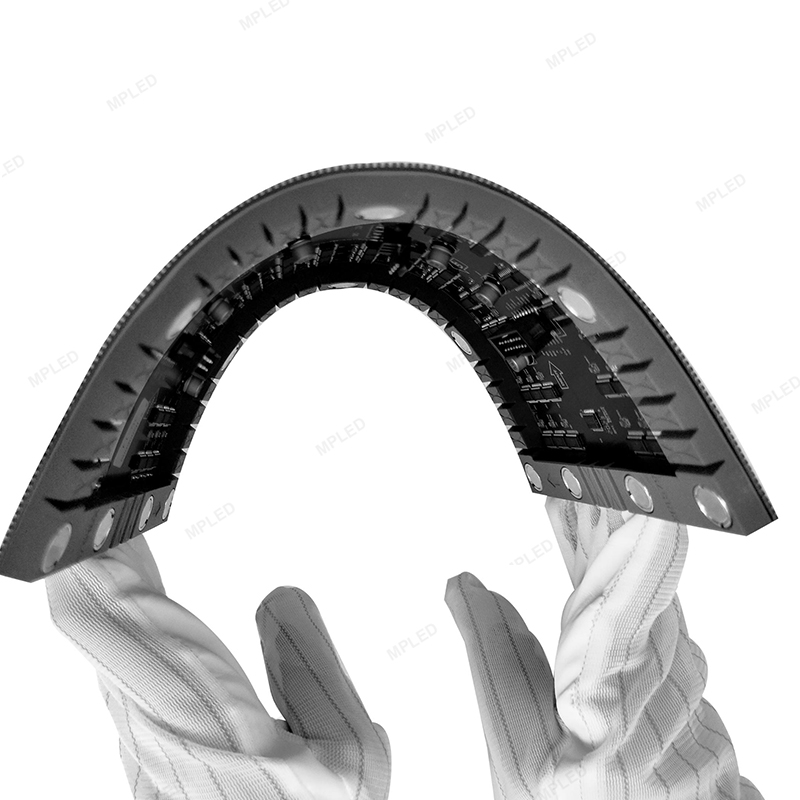

More flexibl

The smallest diameter can do 509mm

more thin

The thickness of the fifth generation soft module is 5.35mm

Compared with the fourth generation soft module, the thickness decreases by 3.25mm

Flat and smooth

The fifth generation soft module is made by high-precision CNC processing technology

The magnet iron seat is made with better flatness)

Anti falling

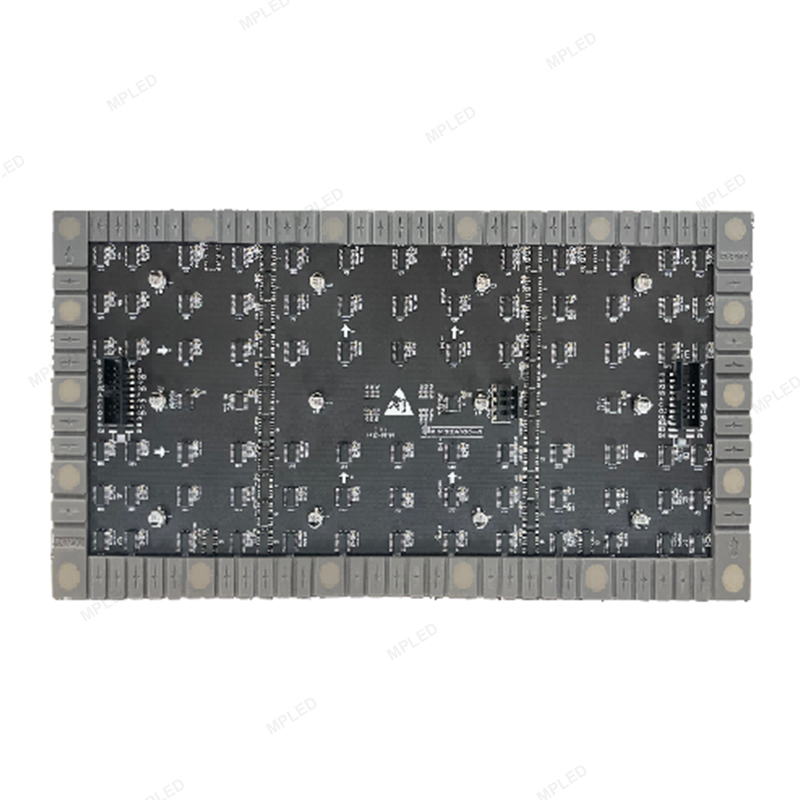

Fifth generation soft module The magnet position is protected by silicone film, which can effectively prevent the copper skin of PCB board from falling off due to improper pulling – module – force

Application scenario

Pixel Pitch	1.56mm	1.66mm	2mm	2.5mm	3.076mm	4mm
LED Configuration	SMD1212	SMD1212	SMD1212/1515	SMD1515	SMD1515	SMD2121
Pixel Density/sqm	250000 dots	250000 dots	250000 dots	160000 dots	105625 dots	62500 dots
Module Size/mm	320×160	320×160	320×160	320×160	320×160	320×160
Module Resolution	248*124	190*96	160*80	128*64	104*52	80*40
Cabinet Size	Customized	Customized	Customized	Customized	Customized	Customized
LED Lamp	SMD3 in 1	SMD3 in 1	SMD3 in 1	SMD3 in 1	SMD3 in 1	SMD3 in 1
IP Rating	IP45	IP45	IP45	IP45	IP45	IP45
Scan	1/48S	1/48S	1/40S	1/32S	1/16S	1/16S
Brightness /sqm	800 nits	800 nits	800 nits	1200 nits	800 nits	1000 nits
View Angle/°	160°/ 140°(H/V)	160°/ 140°(H/V)	160°/ 140°(H/V)	160°/ 140°(H/V)	160°/ 140°(H/V)	160°/ 140°(H/V)
Gray Scale/bit	16 bit	16 bit	16 bit	16 bit	16 bit	16 bit
Max. Power Consumption/W	490 W/sqm	490 W/sqm	550 W/sqm	550 W/sqm	550 W/sqm	550 W/sqm
Ave. Power Consumption/W	165 W/sqm	165 W/sqm	150 W/sqm	150 W/sqm	150W/sqm	150 W/sqm
Refresh Frequency/Hz	≥3840 Hz	≥3840 Hz	≥3840 Hz	≥3840 Hz	≥3840 Hz	≥3840 Hz
Operating Power		AC 96~242V 50/60Hz
Operating Temperature		-10℃~+50℃
Operating Humidity		10~90%RH
Operating Life		100,000Hours
