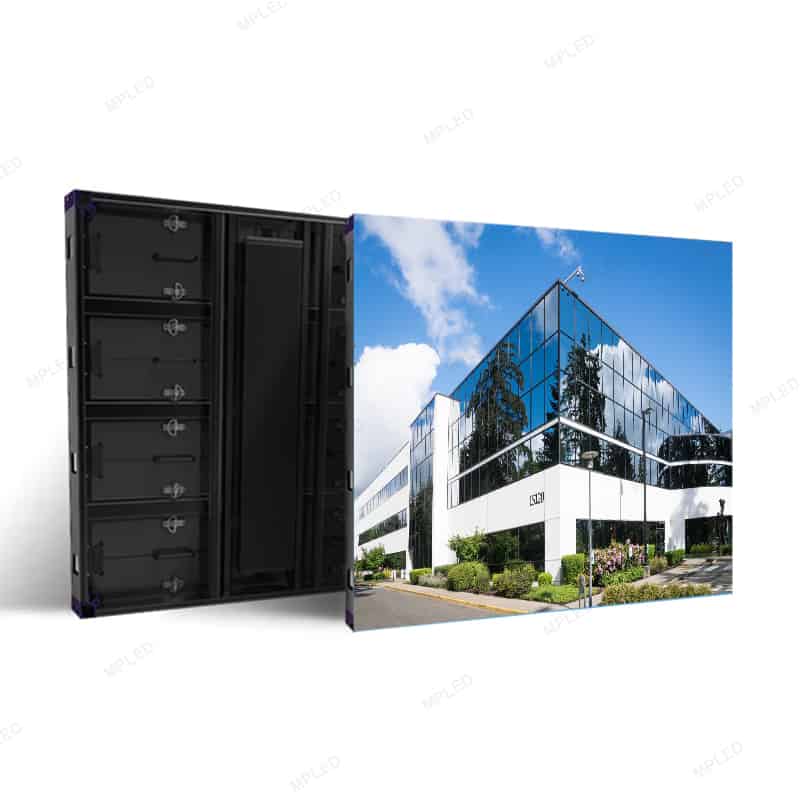

AF Plus Series LED Display

High-End Outdooor Adverts LED Display

  • Module Size/mm: 480 x 320
  • Cabinet Size: 960 x 960 mm
  • Cabinet Weight: 28.5kg
  • IP Rating: IP68 front /IP67 rear
  • Refresh Frequency/Hz: 3840 Hz
  • Operating Temperature: -20℃~+70℃
Quote Now Next
AF Plus Series LED Display
  • Features
  • Specifications
  • Download
  • Cases

Parameter                                                                                           AF Plus
Pixel P6.67 P8 P10
Pixel Pitch(mm) 6.67mm 8mm 10mm
Density（Pixels/㎡） 22500 15,625 10,000
LED Encapsulated SMD2727 SMD3535 SMD3535
Module resolution 72*48 60*40 48*32
View angle 160°/120° 160°/120° 160°/120°
Module size 480×320
Cabinet size 960*1280/960*960/960*640/1440*1280/1440*960
Thickness 95
Cabinet weight（KG/㎡） 31.5KG/M²
Brightness（nits） 7000-10000nits（7000nits for Nationstar Copperline,8000-10000nits for Goldline）
Max power consumption（W/㎡） ≦550w/M²
Average power consumption（W/㎡） ≦100w/M²
Voltage input 100-240V AC 50-60Hz
Work temperature  -20°～ +45°
Storage temperature  -35°～ +85°
Refresh ≧1920Hz
Waterproof IP grade IP68 front /IP67 rear
Support signal port S-video,VGA,DVI,HDMI,SDI



Indoor GOB P1.86 with excellent performance

Indoor GOB P1.86 with excellent performance

Vietnam GOB P1.86 indoor conference LED display
  • Location: Vietnam
  • Pixel pitch:P1.86
  • Size:4800x1280mm
  • Time:2024
Russian indoor transparent screen P3.9-7.8 National star lamp 5000 brightness 45 square

Russian indoor transparent screen P3.9-7.8 National star lamp 5000 brightness 45 square

Indoor transparent screen P3.9-7.8 National star lamp 5000 brightness
  • Location:Russia
  • Pixel pitch:P3.91
  • Size:45 square
  • Time:2022
Austria P2.6 Indoor Curved LED display

Austria P2.6 Indoor Curved LED display

Austria P2.6 Indoor Curved LED display
  • Location:Austria
  • Pixel pitch:P2.6
  • Size:3 sets W3x H1.5m,2 sets W1x H1.5m
  • Time:2022
Indoor 3840Hz P2.9 LED display in Japan shopping mall

Indoor 3840Hz P2.9 LED display in Japan shopping mall

Indoor 3840Hz P2.9 LED display in Japan shopping mall
  • Location:Japan
  • Pixel pitch:P2.9
  • Size:30pcs
  • Time:2022
America Stadium Score 50.4feetx 25.2feet P10 LED Display

America Stadium Score 50.4feetx 25.2feet P10 LED Display

American Stadium Score 50.4feetx 25.2feet P10 LED Display
  • Location: America
  • Pixel pitch:P10
  • Size: 50.4feetx 25.2feet
  • Time:2021
Canada RT series P3.91mm outdoor cabinet 500x500mm 300 rental LED display

Canada RT series P3.91mm outdoor cabinet 500x500mm 300 rental LED display

Canada RT series P3.91mm outdoor cabinet 500x500mm 300 rental LED display
  • Location:Canada
  • Pixel pitch:P3.91
  • Size:75sqm
  • Time:2021
